Product Introduction:

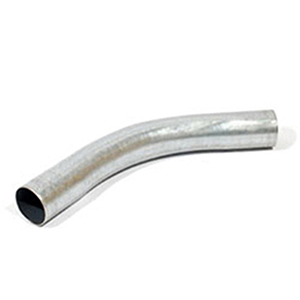

EMT elbow is manufactured from listed EMT conduit in accordance with the latest specifications and standards of ANSI C80.3 (UL797). They are bent sections of conduit and used to change raceway direction or bypass obstructions.
The interior and exterior surfaces of elbows are free from defect with a smooth welded seam,and also thoroughly and evenly coated with hot dip galvanizing in such a way that metal-to-metal contact and galvanic protection against corrosion are provided. Moreover, surfaces of the elbows adopts additional coating after galvanizing to provide further protection against corrosion.
Elbows are produced in normal trade sizes from 1/2” to 4”, and available in any degree of bend from 5° to 90°, and special radius.
Certifications & Compliances:
ANSI C80.3 (UL797)
National Electrical Code® - Article 358
UL File No: E358458
| DIMENSIONS, WEIGHT AND PACKING CHART (45°) | ||||||||
| Trade Size |
UPC Number |
Minmum UL Radius | Weight per 100 pcs | Carton | Weight / Carton | |||
| mm | in | kg | lbs | pcs | kg | lbs | ||
| 1/2'' | 792273419954 | 102 | 4.016 | 7.70 | 17 | 50 | 3.87 | 8.54 |
| 3/4'' | 792273419961 | 114 | 4.488 | 13.40 | 29 | 50 | 6.69 | 14.74 |
| 1'' | 792273419978 | 146 | 5.748 | 23.10 | 51 | 35 | 8.08 | 17.81 |
| 1 1/4'' | 792273419985 | 184 | 7.244 | 42.60 | 94 | 30 | 12.78 | 28.18 |
| 1 1/2'' | 792273419992 | 210 | 8.268 | 57.10 | 126 | 15 | 8.57 | 18.89 |
| 2'' | 792273420004 | 241 | 9.488 | 85.90 | 189 | 15 | 12.89 | 28.42 |
| 2 1/2'' | 792273420011 | 267 | 10.512 | 141.20 | 311 | 50 | 70.62 | 155.68 |
| 3'' | 792273420028 | 330 | 12.992 | 220.30 | 486 | 40 | 88.13 | 194.29 |
| 3 1/2'' | 792273420035 | 381 | 15.000 | 341.90 | 754 | 35 | 119.67 | 263.81 |
| 4'' | 792273420042 | 406 | 15.984 | 420.20 | 926 | 35 | 147.07 | 324.23 |
