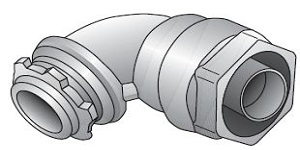

90° Liquid Tight Connectors

Use:
• Terminate and seal liquidtight flexible metal conduit, at 90° angle, to either oiltight, liquidtight or raintight box or enclosure. Connectors can be used with tapered thread female entry or unthreaded knockout using the provided sealing washer and locknut.
Features:
• Furnished with locknut and sealing ring
• Liquidtight/Raintight/Oiltight
• Suitable for grounding (through 11⁄4”)
• Suitable for Wet Locations
Material/Finish:
• Zinc Die Cast
Applicable Third Party Standards:
UL Standard: 514B
CSA Standard: C22.2 No. 18
NEMA: FB-1
Fed. Spec: W-F-406D,
Type 1, Class 3, Style K
U.L. File No: E358457

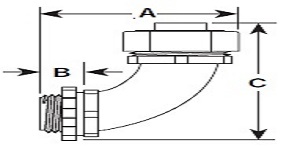

Catalog Number Trade Size (in) Dimensions (in)
A B C
E-LTC 38-90A *⅜'' 2.16 .83 .52
E-LTC 50-90A ½'' 2.16 .83 .52
E-LTC 75-90 ¾'' 2.57 .95 .52
E-LTC 100-90 1'' 3.22 1.12 .67
E-LTC 125-90 1 ¼'' 3.87 1.45 .67
E-LTC 150-90 1 ½'' 4.33 1.53 .67
E-LTC 200-90 2'' 5.35 1.86 .67
E-LTC 250-90 2 ½'' 6.38 2.16 1.14
E-LTC 300-90 3'' 7.00 2.52 1.20
E-LTC 350 -90 3 ½'' 7.54 2.81 1.25
E-LTC 400-90 4'' 8.11 3.10 1.30
*Fits in 1/2" KO.
Malleable iron and steel models are also available. Please specify when ordering
