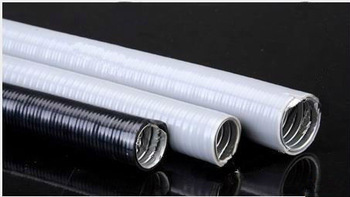

LSZH Liquid-Tight Steel Flexible Conduit

Product Introduction and Applications:
Type EFF Liquid-tight Flexible Steel Conduit is a raceway of circular cross section having an outer liquidtight, nonmetallic, sunlight-resistant, Low Smoke Zero Halogen jacket over an inner flexible metal core with associated couplings, connectors, and fittings for the installation of electric conductors.
It is intended for use in wet locations or where exposed to mineral oil and suitable for
• Underground railway, Tunnels
• Hospitals, public places
• Machine tools
• Air conditioning / ventilation
• Computer / underfloor applications
• Airports, public building and halogen
• Security
Features:
• Low Smoke Zero Halogen PE jacket
• For use with standard metallic liquid-tight fittings
• Steel core for mechanical protection
• Complete protection against most liquids and moisture vapor
• Superior protection for circuits located in hostile environments
• Installs quickly and easily from handy payout carton

SPECIFICATIONS
Size (inch) Inside Diameter Outside Diameter Vinly Sheath Thickness (mm.) Min.Bending Radius (mm.) Lenght of Each Roll
Min(mm) Max (mm) Min(mm) Max (mm) Ft. m.
1/2'' 15.7 16.3 20.2 20.7 0.5 65 100 30
3/4'' 20.7 21.2 25.5 26.1 0.8 75 100 30
1'' 26.0 26.6 31.6 32.2 0.8 100 100 30
1 1/4'' 34.7 35.4 40.8 41.5 0.8 125 50 15
1 1/2'' 40.0 40.6 46.6 47.2 1.0 150 50 15
2'' 51.3 51.9 58.1 58.7 1.0 175 50 15
2 1/2'' 62.9 63.3 72.1 73.0 1.0 200 25 10
3'' 77.9 78.7 87.9 88.9 1.2 225 25 10
4'' 101.6 102.6 113.2 114.3 1.2 275 25 10
