Product Introduction:

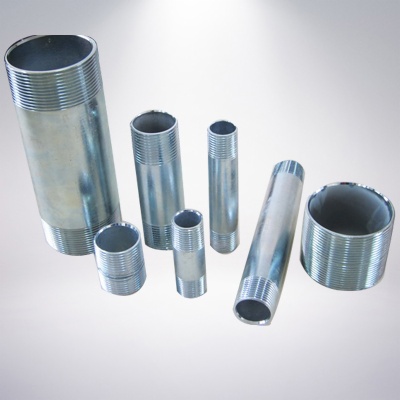

Rigid conduit Nipple is manufactured from high-strength rigid steel conduit shell in accordance with the latest edition of ANSI C80.1(UL6).
A nipple is a short length of threaded conduit that's used to extend a conduit system by coupling items together or connecting conduit to another element in the conduit system. Nipples are used between conduit and items such as, fittings, boxes, and enclosures or between two boxes or enclosures.
Features And Benefits:
• The interior and exterior surfaces of nipples are free from defect with a smooth welded seam, and evenly coated with zinc with hot dip galvanizing process, so that metal-to-metal contact and galvanic protection against corrosion are provided.
• The nipples with short length are electric plated and longer ones adopt the clear post-galvanizing coating to provide further protection against corrosion.
• Nipples are available in nominal trade sizes from 1/2“ to 6”.
• Besides close nipples, the following standard lengths are available: 1-1/2", 2”, 2-1/2”, 3”, 3-1/2”, 4”, 5”, 6”, 8”, 10”, 12” .
UL File No: E468594
| DIMENSIONS AND PACKING CHART | |||||||||||||||||||||||||
| PIPE SIZE |
CLOSE | CLOSE | 1 1/2'' | 2'' | 2 1/2'' | 3'' | 3 1/2'' | 4'' | 5'' | 6'' | 8'' | 10'' | 12'' | ||||||||||||
| LENGTH | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | CTN | Wt/¢ | |
| INCH | INCH | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS | EA | LBS |
| 1/2'' | 1 1/8'' | 600 | 6 | 600 | 8 | 600 | 12 | 400 | 15 | 400 | 19 | 300 | 22 | 300 | 26 | 200 | 33 | 200 | 40 | 100 | 54 | 75 | 68 | 75 | 82 |
| 3/4'' | 1 3/8'' | 400 | 9 | 400 | 9 | 300 | 14 | 300 | 19 | 200 | 24 | 200 | 28 | 150 | 34 | 100 | 43 | 100 | 52 | 75 | 73 | 50 | 89 | 50 | 109 |
| 1'' | 1 1/2'' | 300 | 16 | 200 | 22 | 200 | 28 | 150 | 36 | 150 | 43 | 100 | 49 | 100 | 64 | 75 | 78 | 50 | 109 | 50 | 138 | 50 | 166 | ||
| 1 1/4'' | 1 5/8'' | 150 | 22 | 150 | 28 | 150 | 37 | 100 | 47 | 100 | 55 | 100 | 66 | 75 | 84 | 50 | 100 | 50 | 136 | 40 | 176 | 30 | 216 | ||
| 1 1/2'' | 1 3/4'' | 100 | 28 | 75 | 34 | 75 | 44 | 50 | 56 | 50 | 68 | 50 | 80 | 50 | 103 | 50 | 122 | 40 | 170 | 30 | 216 | 20 | 260 | ||
| 2'' | 2'' | 75 | 44 | 50 | 59 | 50 | 72 | 40 | 88 | 40 | 103 | 40 | 132 | 30 | 160 | 20 | 220 | 20 | 285 | 15 | 335 | ||||
| 2 1/2'' | 2 1/2'' | 40 | 84 | 40 | 100 | 30 | 120 | 30 | 150 | 20 | 197 | 20 | 240 | 10 | 329 | 10 | 422 | 10 | 505 | ||||||
| 3'' | 2 5/8'' | 30 | 118 | 20 | 130 | 15 | 157 | 15 | 200 | 15 | 260 | 10 | 300 | 7 | 411 | 5 | 528 | 5 | 630 | ||||||
| 3 1/2'' | 2 3/4'' | 20 | 160 | 10 | 240 | 8 | 320 | 8 | 373 | 7 | 510 | 4 | 655 | 4 | 785 | ||||||||||
| 4'' | 2 7/8'' | 20 | 180 | 10 | 285 | 8 | 380 | 8 | 440 | 4 | 600 | 4 | 775 | 4 | 925 | ||||||||||
| 5'' | 3'' | 5 | 240 | 5 | 480 | 5 | 600 | 4 | 825 | 3 | 1055 | 3 | 1260 | ||||||||||||
| 6'' | 3 1/8'' | 5 | 350 | 5 | 660 | 5 | 820 | 4 | 1125 | 3 | 1440 | 3 | 1720 | ||||||||||||
