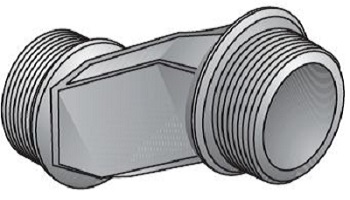

Offset Nipples

Use:
Provides box-to-box connection of knockouts. Allows misaligned knockout connection by “rolling” the offset nipple until aligned with each knockout.
Feature:
• Hub-to-hub offset is 3⁄4”.
• See “Body Length” in table for distance between boxes.
• Available with insulated throat.
Material/Finish:
• Malleable Iron/Zinc Electroplated
Applicable Third Party Standards:
UL Standard: 514B
CSA Standard: C22.2 No. 18
Fed. Spec: W-F-408E
NEMA: FB-1
UL File No: E358457

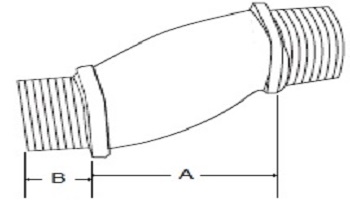

Catalog Number Trade Size (in) Dimensions (in)
A B C
E-L 376 ½'' 2.44 .94 .75
E-L 377 ¾''  2.56 1.15 .75
E-L 378 1'' 2.75 1.42 .75
E-L 379 1 ¼'' 2.88 1.85 .75
E-L 380 1 ½'' 3.06 2.07 .75
E-L 381 2'' 3.12 2.60 .75
E-L 382 2 ½'' 3.88 3.19 .75
E-L 383 3'' 4.38 3.63 .75
