Use:

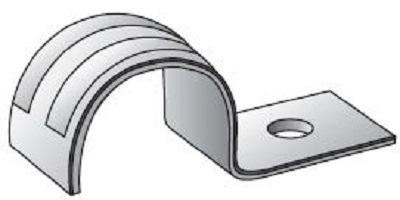

• Click-on type one-hole straps for rigid conduit or IMC. Provides support for the
conduits, as required by the National Electrical Code.
Note:
• Sizes 21⁄2” through 4” are also suitable for EMT.
Material/Finish:
• Steel/Zinc Plated
Applicable Third Party Standards:
UL 514B
CSA Standard: C22.2 No. 18
UL File No: E358456
| Catalog Number | Trade Size (in) | Dimensions (in) | Gauge Steel | Decimal Steel | |||
| A | B | ||||||
| E-L 599 T | ⅜'' | 1.56 | .56 | 14 | .075 | ||
| E-L 600 T | ½'' | 1.93 | .62 | 14 | .075 | ||
| E-L 601 T | ¾'' | 2.25 | .75 | 14 | .075 | ||
| E-L 602 T | 1'' | 2.62 | .87 | 14 | .075 | ||
| E-L 603 T | 1 ¼'' | 3.00 | .87 | 13 | .090 | ||
| E-L 604 T | 1 ½'' | 3.75 | 1.00 | 12 | .105 | ||
| E-L 605 T | 2'' | 4.31 | 1.12 | 11 | .120 | ||
| E-L 606 T | 2 ½'' | 5.00 | 1.25 | 9 | .150 | ||
| E-L 607 T | 3'' | 5.62 | 1.25 | 9 | .150 | ||
| E-L 608 T | 3 ½'' | 6.25 | 1.25 | 7 | .180 | ||
| E-L 609 T | 4'' | 6.75 | 1.25 | 7 | .180 | ||
